S / 02 Five production systems

Five products.
Five complete systems.

We do not sell a catalogue. Each system starts from the part and ends with a line that has been assembled, run and approved before it leaves.

What you get

Machine, mold, auxiliaries, interface engineering, pre-acceptance testing and documentation — delivered under one contract.

00 Every system includes

One contract.
Six kinds of work.

The equipment is only half the project. The other half is making six suppliers behave like one — before the container is packed.

Machine selection

Tonnage, shot size and controls matched to the part and mold — not to a stock list.

Mold & tooling

Cavity count, steel, hot runner and cooling specified with the molder who will run it.

Auxiliaries & automation

Dryers, TCUs, robots, conveyors and packers sized as one material flow.

Interface engineering

Robot signals, water, air, power and safety circuits defined before shipment.

Pre-acceptance

Assembled, run and inspected. Samples and data approved before packing.

Documentation & training

Manuals, spare-parts lists and operator training in the language of the plant.

High-speed PET injection molding machine — System S/01 · MachineHigh-speed PET

S / 01Liquid packaging

PET preform system

Same capacity with 80% of the investment.

Built around cost per preform. Injection speed, cooling and take-out are tuned together, so the line holds a short cycle without giving up wall thickness.

High-speed PET machine

Ultra-high injection speed, electric plasticizing and high-response clamping. Screw and shot size are selected for the preform weight, not the headline tonnage.

High-response clampingElectric plasticizing

Multi-cavity preform mold

Hot-runner balance and cooling layout are verified before shipment, so every cavity fills at the same rate and every preform cools at the same rate.

Hot runnerBalanced coolingCavity matched

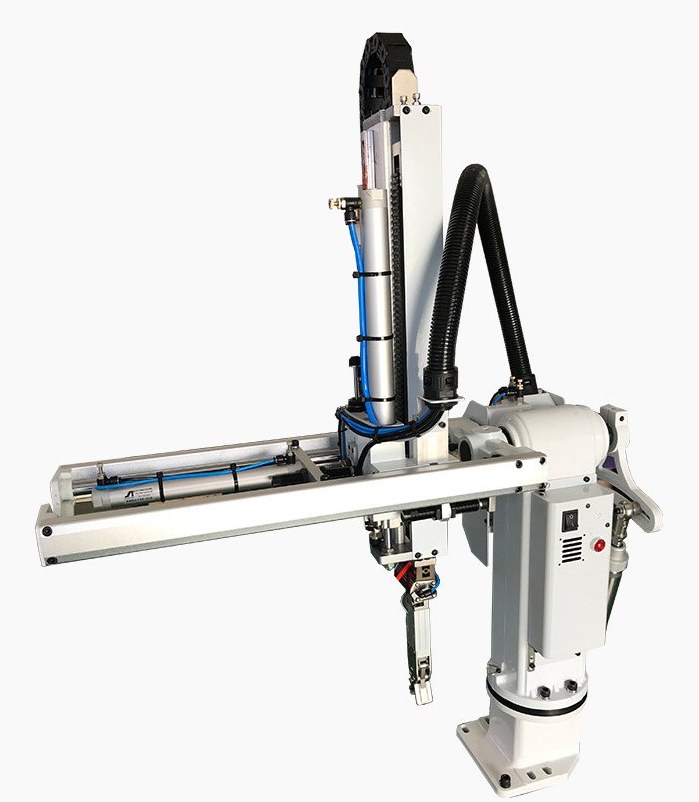

Drying + side-entry robot

A dehumidifying dryer protects IV, while a high-speed side-entry robot takes preforms out and hands them to inspection or packing without a manual step.

Inline inspectionUnmanned take-out

Same capacity, 80% of the investment Liquid packaging · high volume

Precision thin-wall packaging mold — System S/02 · MoldThin-wall packaging

S / 02Rigid packaging

Thin-wall packaging system

Built for speed. Priced for margin.

Containers, lids and cups live on cycle time. The machine, mold and take-out are tuned as one, so a fraction of a second is designed in — not chased after installation.

Thin-wall high-speed machine

Ultra-high injection speed, short cycle and a high-response servo system. Accumulator-assisted injection is specified where the wall section demands it.

Ultra-high speedShort cycleHigh-response servo

Balanced-fill thin-wall mold

Runner balance, cooling and ejection are designed together. The mold is sampled on the machine before it ships — not on arrival.

Balanced runnerEfficient coolingOptimized demolding

High-speed robot + TCU + dryer

Take-out, mold temperature and material drying are sized to the cycle, so the line does not wait on a peripheral.

Synchronized take-outPrecise mold temperature

Short cycle. Balanced filling. Lower unit cost. Rigid packaging · FMCG

Large two-platen injection molding machine for pallets — System S/03 · MachineLarge two-platen

Injection molding machine on a factory floor

S / 03Logistics

Pallet production system

Heavy parts. Lighter cost.

Pallets are a cost-per-piece business: large shot weights, regrind-heavy recipes, and a line that cannot stop for manual stacking.

Large two-platen machine

Ultra-high clamping force and large shot capacity, with an efficient plasticizing system for heavy parts and high regrind ratios.

Ultra-high clampingLarge shotRegrind-ready

Wear-resistant pallet mold

Large structure, wear-resistant steel and optimized venting. Hot-runner or gas-assisted options are selected against the part design.

Wear-resistantOptimized ventingGas-assist option

Regrind handling + robotic stacking

Regrind is metered back into the recipe, and a robot stacks finished pallets. RFID tracking keeps each batch visible from resin to dispatch.

Regrind meteringRobotic stackingRFID tracking

80% regrind, automated stacking Logistics · heavy parts

Paint pail mold with sample pails — System S/04 · MoldLeak-proof pail

S / 04Industrial packaging

Paint pail system

Sealed, tested, traceable.

A pail that leaks is a claim. Sealing is designed into the mold and verified on every pail, not on a sample from the first hour.

Precision two-platen machine

Long opening stroke for deep cavities, precise injection control and a stable clamp for thin sealing lips.

Long strokePrecise injectionStable clamp

Leak-proof pail mold

Precision sealing geometry, anti-shrink design and multi-cavity balance. In-mold labeling can be specified for branded pails.

Precision sealingAnti-shrinkIML optional

Drying, TCU and 100% leak test

Material is dried to zero moisture, mold temperature is held stable, and every pail passes an air-tightness test before packing.

Zero moisture100% air-tightness

Zero leakage at the gate Industrial packaging · leak critical

High-cavity cable tie mold and finished tie — System S/05 · MoldHigh-cavity cable tie

S / 05Consumables

Cable tie system

Precision at volume. Unmanned downstream.

Millions of small parts to one tolerance. The mold does the precision; the automation does everything after it.

Small high-precision machine

Ultra-high injection precision and millisecond response for thin, small parts and very short cycles.

High precisionFast responseShort cycle

High-cavity cable tie mold

High cavity count, optimized gate layout and hardened steel for a long tool life at high shot counts.

High cavity countOptimized gateHardened steel

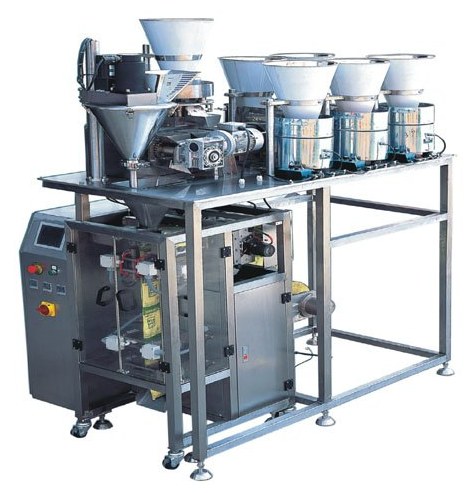

Dry / cut / pack

Material drying, cutting and separation, counting and bagging are integrated into one downstream — no manual handling between the mold and the carton.

Unmanned downstreamCounted packing

From resin to counted bags, unmanned Consumables · high volume

Not sure which system fits?

Send the part.
We will tell you.

Product drawings, samples or a one-page brief are enough to start a configuration. We will show you the machine, mold and auxiliary package that fits — and what it costs.

Start a project PDF / STEP / DWG / sample photos or email us directly
